Made in the USA This product is made in the USA

The HDMP3 is a table top, commercial bag sealer. It can be used as a:  bag sealer, vacuum bag sealer &/or MAP (modified-atmosphere packaging) bag sealer.

Dual or single high pressure seal bars are available from 20″ to 60″ widths. Foot switch operated, the HDMP3 can be mounted on a stand and located above a conveyor.

STANDARD FEATURES:

  • Seal lengths: 20, 25, 30, 35, 40, 50, 60 inch
  • Seal width: 1/4” (std.)
  • PLC controller w/color enhanced LCD touch screen
  • 5 operating modes:
    • Seal Only
    • Vacuum-Seal
    • Vacuum-Gas-Seal (1-99 Cycles)
    • Vacuum-Gas-Vacuum-Seal
    • Gas-Vac-Seal (1-99 cycles)
  • NEMA stainless steel enclosure
  • Retracting vacuum nozzles:
    • 2 nozzles (20”-30”)
    • 4 nozzles (35”-60”)
  • Upper & lower heating elements (1/4” standard)
  • Electronic foot switch activator

options:

  • Gas purge
  • Vacuum moisture / particle filter(s)
  • High flow wide profile vacuum nozzles
  • Product support tray
  • Bag stretcher
  • Stand: multi-position or full vertical
  • 3/8 or 1/2” seal width (may require 220v)
  • CE Certification
  • 220VAC
  • Exhaust silencer

UTILITIES:

  • Air:  4.6 or 9.2 SCFM @ 90 PSI
  • Electrical: 120 VAC, 1 PH, 60 Hz

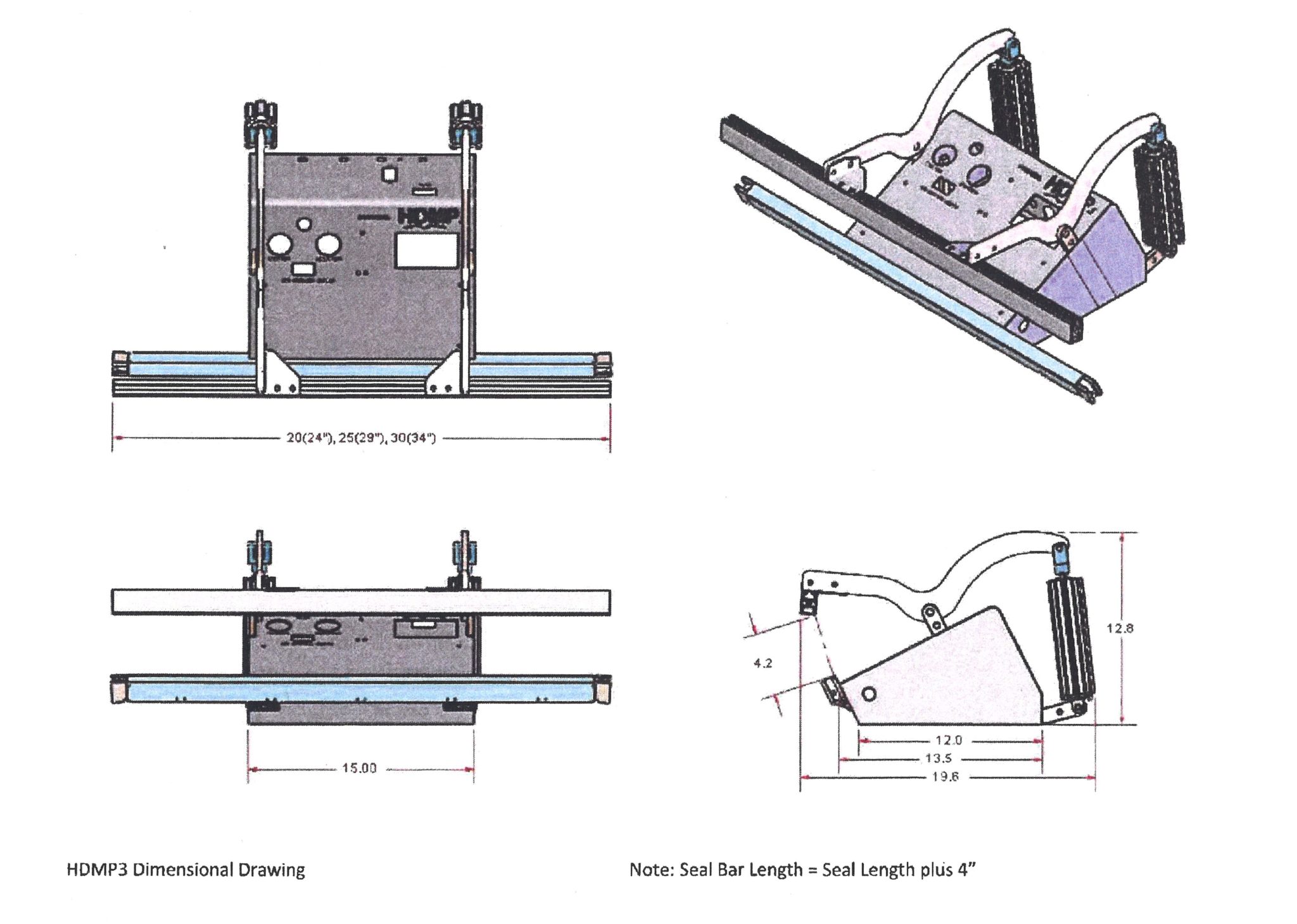

Approximate Dimensional Drawing:
