Made in the USA This product is made in the USA

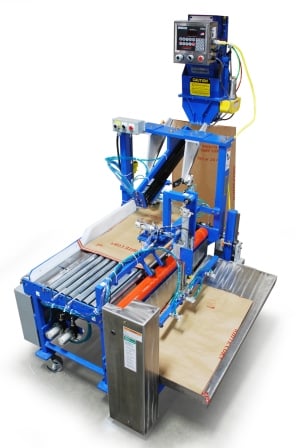

The Chantland AP 1000 is an automated bag placer that interfaces with an open mouth bag filling station. The AP 1000 is designed to open and place a variety of paper, plastic & poly woven bags on the shoot of a filling station. The AP 1000 can place bags at rates up to of 15 (50 lb.) or 10 (100 lb.) bags/minute.
Flat stacked open mouth bags are loaded on a SS bag lift table where a suction cup rail picks up a single bag and positions it in the pickup area. A second suction cup rail picks up the bag and positions it under the filling spout. The bag is clamped to the spout & opened pneumatically. The bag is then filled and released. An optional empty bag delivery conveyor is available.

Standard Features:

  • Adjustable for different size bags
  • NEMA 12 controls
  • Pneumatic controls
  • Industrial enamel finish
  • Quick release clamps
  • Casters
  • SS bag lift table
  • Singulation bag feed station


  • SS construction
  • Powder coated finish
  • Empty bag conveyor

Utility Requirements:

  • Air: 15 CFm @ 60-80 PSI
  • Electrical: TBD by project

Approximate Dimensional Drawing:
