Brand: Choice Bagging Equipment
Made in the USA ![This product is made in the USA]()
The Choice Bagging Equipment Model 5100 is a gravity fed bulk bag filler for free-flowing products. The Model 510 can fill 500 lb. to 4,400 lb. bulk bags (also known as super sacks, totes and IBCs) up to 10 bags/hour. Typical applications include: fertilizer, corn, soybeans, salt, sugar, sand, limestone, and pellets.
It has a digital scale and an inflatable bag seal cuff for dust-free filling. Optional slide gates, augers, or rotary air locks increase its material handling range. A pre-fill inflator and a densifier to settle material during filling are also available.
STANDARD FEATURERS:
- up to 10 bags/hour
- 500-4,400 Lb. (250-2,000KG)
- digital scale
- accuracy +/- 0.5%
- forklift portable
- NEMA 12 enclosure
OPTIONS:
- dust tight head assembly
- dust collector
- vibratory bag densifier
- bulk/dribble material flow
- stainless steel fill head
- infeed & outfeed conveyors
UTILITIES:
- Air: 80 PSI @ 1 CFM
- Electrical: 110 Volt / 1 Phase / 60 Cycle

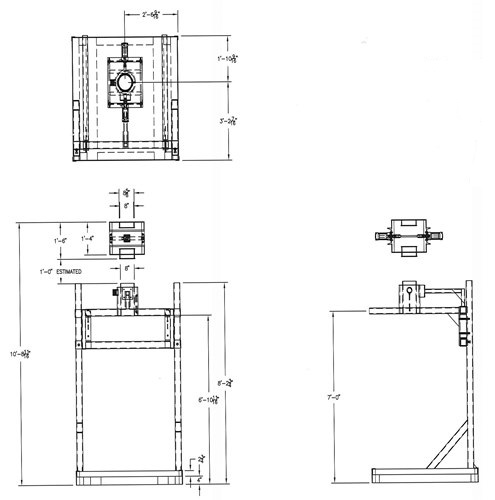

APPROXIMATE DIMENSIONAL DRAWING
