The CE-554TS is a semi-automated top & bottom case taper for uniform size cartons. Manually adjustable belt systems allow you to tailor the machine to both small and large boxes. The CE-554TS has 2” tape heads or optional 3” tape heads.
STANDARD FEATURES:
- top and side belts
- minimum box size: 5.9″(L) x 4.75″(W) 6.5″(H)
- maximum box size: 19.6″(W) x 19.6″(H)
- manual width/heigh adjustment
- (3) 200-watt motors
- 59’/min. (18m/min) belt speed
- 2″ tape heads
- 16″ wide infeed/outfeed tables
- breaker switch
- emergency stop button
- adjustable height casters
OPTIONS:
- 3″ tape heads
UTILITIES:
- Electrical: 110 VAC, 1 Ph, 60 Hz
- Air: None

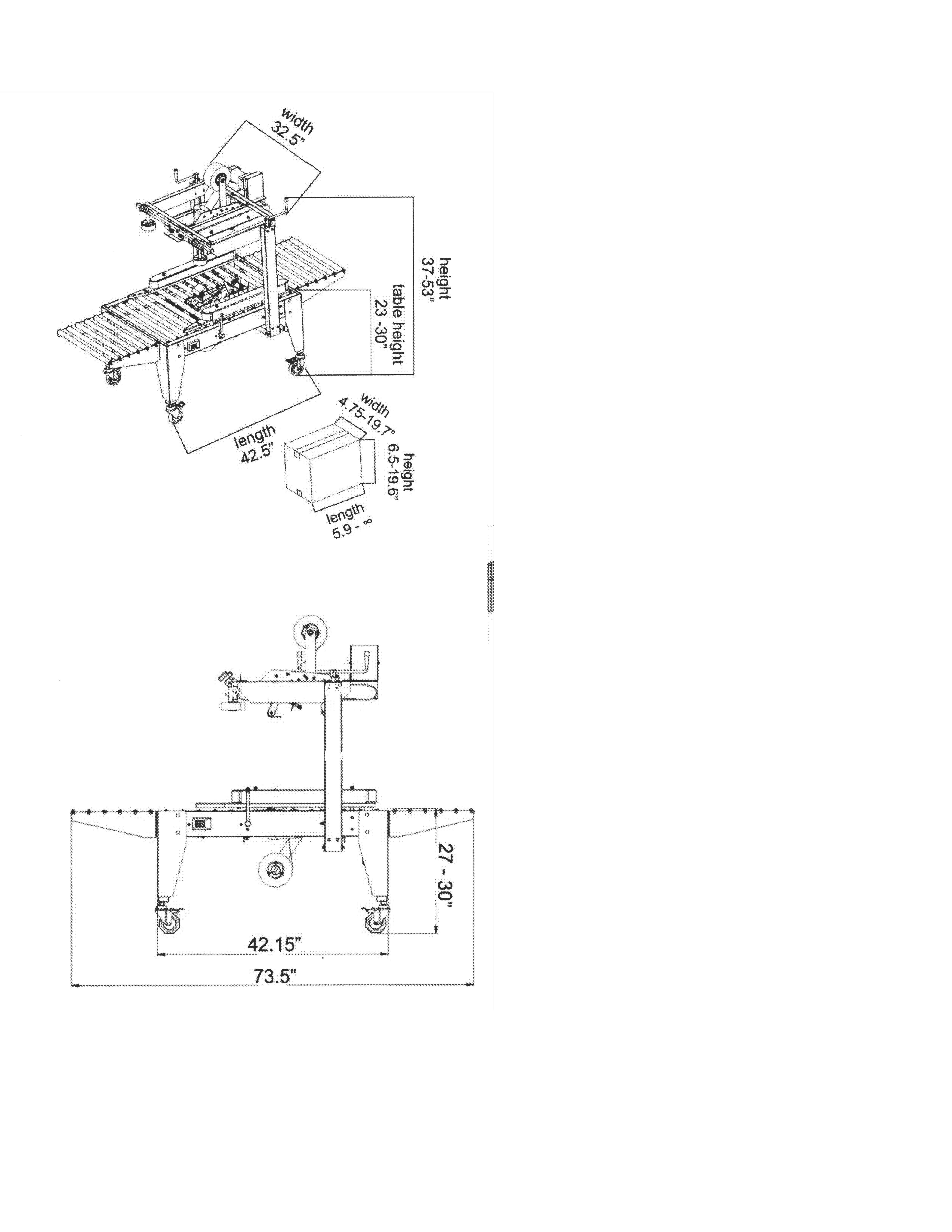

APPROXIMATE DIMENSIONAL DRAWING :
