Brand: Hamer Inc
Made in the USA This product is made in the USA

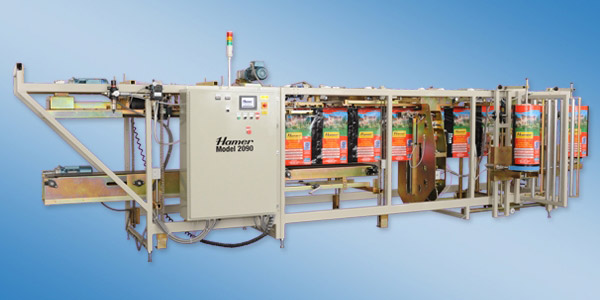

The Hamer Model 2090 is an automated, horizontal, form/fill/seal poly bagging system designed to: form the bag, place the bag under the filling chute, fill the bag with the desired weigh of product and then seal the bag closed. The Model 2090 is specifically designed to support a wide variety of bag sizes from 10″ to 26″ wide and up to 42″ long and various types of bags such as bottom gusset, zipper, top trimmed, miter corner and handle. Its exclusive QuickAdjust™ system reduces bag-changing time by 200% relative to previous designs and complex bag changes can be accomplished in less than 15 minutes. The exclusive double-sealed, self-cleaning pulley design requires no adjustments and keeps contaminants away from the belt-path bearings. The all-new MaxFill™ chute-and-jaw design gets more product into the bag more quickly: up to 34 bags per minute, depending on bag quality, flow rates, and your operational parameters1. Built with a modular frame, a wide range of bag and machine options can be added during initial machine build, or afterward in the field.

Standard Features:

  • Speeds up to 34 bags per minute
  • Bags from 10 ¾” to 26″ wide, up to 42″ long (2 to 8 mil poly thickness)
  • 24 VDC digital controls
  • NEMA-12 electrical controls
  • MaxFill™ chute for maximum product volume
  • Simplified operator touch panel
  • Bag counting, operational alarms, and diagnostics
  • Handheld remote operator control
  • SEW euro-drive motors
  • Vertical roll holder with pneumatic core chuck
  • Top-frame mounted internal components
  • Automatic heat sealer with auto-open
  • Stainless steel (T304) contact surfaces
  • QuickAdjust™ chute adjustment for fast bag-size changes
  • Heavy-duty hardened self-cleaning dual sealed pulleys
  • Pre-fill, post-fill bag staging for added seal integrity
  • Zinc dichromate-plated internal components
  • Extended-length bag top-seal cooling plenum
  • Heavy-duty powder-coated 4″ structural steel frame
  • Approximate size 4’W x 21’L x 5′ 7″H

1Testing might be required to determine obtainable speeds and accuracy for your application.

Options:

  • Second vertical roll-holder
  • EZ Load II™ horizontal roll-holder
  • JamControl™ overfilled-bag detection
  • Side-of-bag settler
  • Bag-settling conveyor
  • Bag Handles
  • Bag punch
  • Patch handle
  • Header/patch handle
  • Machine enclosure doors/panels (expanded metal or Lexan®)
  • Bag coding
  • Air-removal devices
  • On-demand thermal transfer printing
  • Easy-open bag perforator
  • Rotary bag-top trimmer with trim-removal
  • Mitered (45 degree) corner sealer
  • Bottom gusset former (3″ to 6″)
  • Zipper
  • Remote communications (ethernet, web or modem)
  • 50 HZ electronics
  • Volumetric or net weigh dosing
  • Full-bag handling conveyors
  • Fully-automated palletizing and pallet wrapping

Utility Requirements:

  • Air: 35 CHM @ 80 PSI
  • Electrical: 240VAC, 3-Phase, 60HZ, 40 AMPS

Approximate Dimensional Drawing:
