The Fischbein Inglett Model 1950 bag placer is a continuous, top loading bag hanger specifically designed to automatically pick and hang multi-wall open mouth paper bags on your weigh scale system. The Model 1950 handles both flat and gusseted bag types (up to 6” gussets) ranging in size from 24 to 56 inches in perimeter and 24 to 40 inches in length at rates up to 22 bags/min. It comes standard with a vertical, top load, bottom fed bag magazine that can hold up to 250 bags. on your weigh scale system. The Model 1950 is easily adaptable in existing or new bagging line installations. Additional key features include a quick change feature to adjust for bag various bag widths and lengths and an adjustable self-contained vacuum system.
- 250 bag capacity
- 24”-56” bag perimeter
- 26”-40” bag length
- Universal bag clamps
- Adjustable self-contained vacuum system
- Variable speed up to 22 bags/min.
- No bag-no dump sensor
- Panel view color touch screen control
- PLC controller
- NEMA 12 rated electrics
- Foot pedal operation
- Conveyors and accessories.
- Air: 60 PSI @ 1.25 cu.ft./bag cycle
- Electrical: 230/460 VAC, 3 ph, 60 HZ

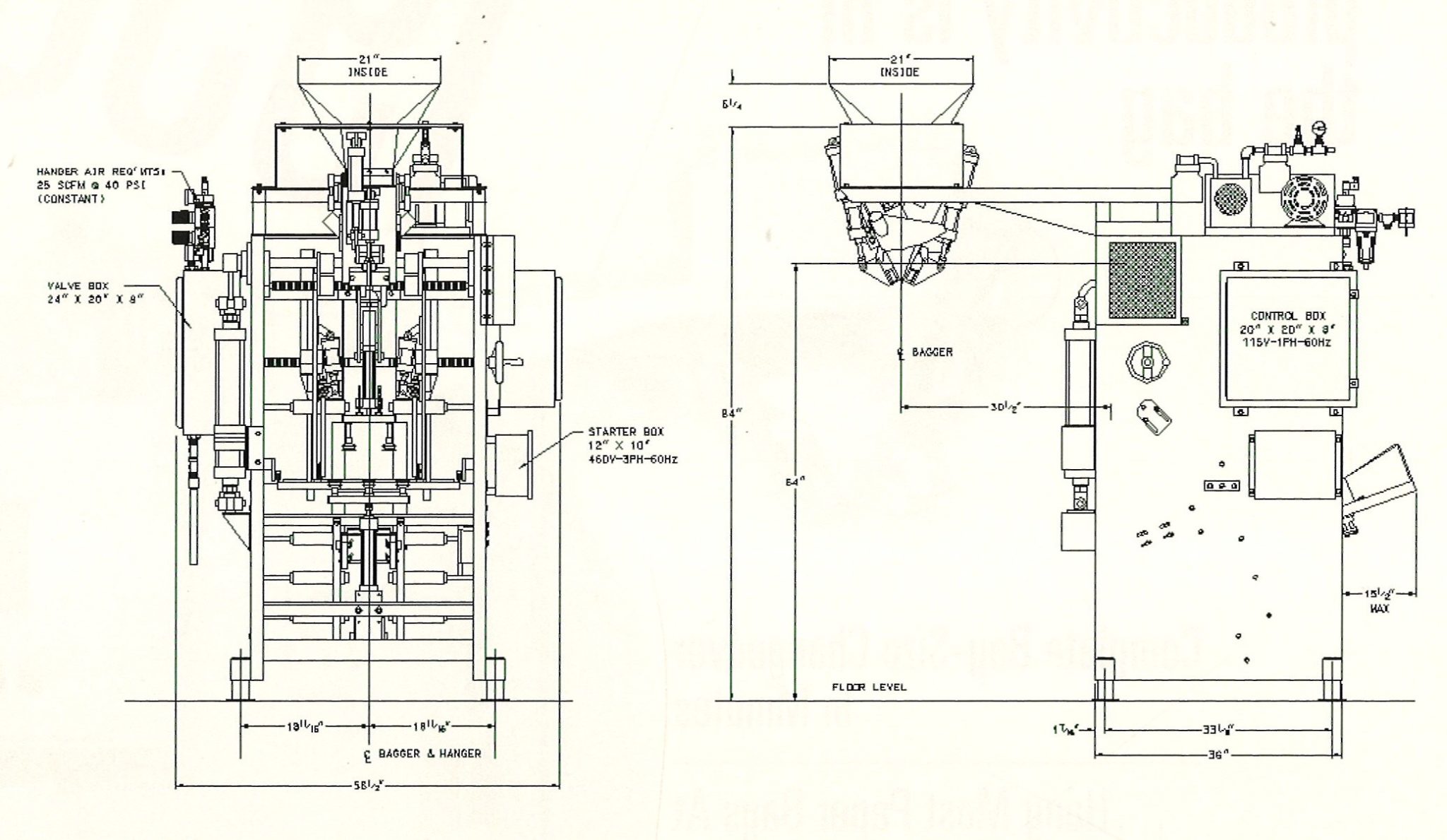

Approximate Dimensional Drawing:
