Made in the USA This product is made in the USA

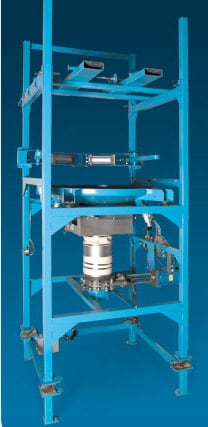

Taylor IBC 2000 is a semi-automated, bulk bag unloader used to empty or deweigh intermediate bulk containers (IBC), totes or super sacks. The IBC 2000 has a weight capacity of 100 lb. to 4,000 lb. and is adaptable to nearly any discharge or deweigh application. The IBC 2000 can be programed to discharge at a given rate on to a take-away conveyor or discharge directly in to a hopper or individual container with a deweigh accuracy up to 0.1%. The universal pick up device (UPD) allows you to pick up, move and hang a bulk bag on the IBC2000, freeing up the fork lift for other tasks. The IBC 2000 is constructed of heavy duty tubular steel and has a compact footprint of 60 in by 60 in.

Standard Features:

  • Speed Up to 8 BPH
  • Accuracy Up to 0.1%
  • Weight Range 100 lb. to 4,000 lb. (45 kg to 1,814 kg)
  • Painted carbon steel
  • Dim: 60” x 60” x 187” (1,524 mm x 1,524 mm x 4,750 mm)

Options:

  • Stainless steel contact points
  • Electronic controls
  • Bag thumpers, massagers, vibrators, agitators
  • Gravity flow spouts
  • Screw feeders
  • Hoist & trolley
  • Flexible auger conveyor
  • Discharge adapters and valves

1Testing might be required to determine obtainable speeds and accuracy for your application.

Utility Requirements:

  • Air: Varies according to options: Contact sales@inpak.com for information.
  • Electrical: Varies according to options: Contact sales@inpak.com for information.

Approximate Dimensional Drawing:
