Made in the USA This product is made in the USA

Taylor IBC 3000 Bulk Bag Filler can be used to fill Intermediate Bulk Containers (IBC) also called totes, FIBC, super sacks or jumbo bags up to 60” in length. In addition, the IBC 3000 can be used to fill drums or boxes with a variety of materials. The modular design allows complete flexibility from a free standing manual operation to a fully integrated automated system. The ICB 3000 has a 100 lb. to 3,000 lb. capacity with accuracy up to 0.1%. Its movable platform can be raised & lowered and vibrated. The IBC 3000 can fill 15 IBCs/hr. or 50 drums/hr. Bag squaring, automatic pallet dispenser and filled pallet takeaway conveyor are just a few of the available options.

Standard Features:

  • Dim. 68”W x 52”D x 102”H
  • Speed Up to 15 bags/hr. or 50 drums/hr.
  • Accuracy Up to 0.1%
  • Weight Range 100 lb to 3,000 lb (45 kg to 1,361 kg)
  • Bag lengths up to 60”
  • Bag squaring unit
  • Movable platform
  • Painted tubular carbon steel
  • Inflatable neck seal and spout conform to all bag neck sizes
  • Bag strap clamps are designed to accommodate various size bags

Options:

  • Stainless steel construction
  • Bag liner inflator
  • Articulating fill arm for drums
  • Automatic bag strap and neck seal release
  • Lift platform
  • Densification/de-aeration
  • Single/dual action knife gate
  • Platform vibrator
  • Pallet dispenser
  • Filled pallet takeaway conveyor
  • Double-wall fill spout dust collection system

Utility Requirements:

  • Air: 60 PSI
  • Electrical: 115 VAC, single phase

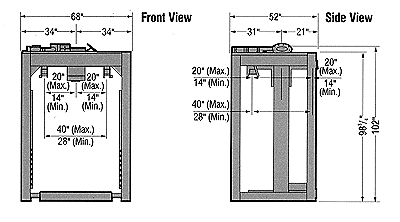

Approximate Dimensional Drawing:
