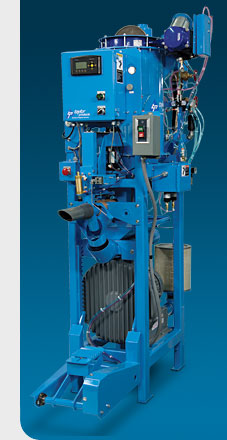

Taylor Model C is a semi-automated, pneumatic, air packer used to fill valve type bags with granular, free-flowing materials, such as seed, fertilizer, plastic pellets, grain and sand. A patented reverse flow is designed to yield exact measurements at high speeds. The Model C can be configured with a single or multiple spouts and can fill 15-125 lb. bags at a rate up to 600 bpm per spout. The Model C includes an integrated bag kicker to remove filled bags.

Standard Features:

  • Single or multiple spouts
  • 15 to 125 lb. bag capacity
  • Up to 600 bpm/spout
  • Scale beam or electronic load cell
  • Accuracy: up to +/- 0.4%
  • 1.5” – 2.5” spout sizes
  • 4,000 cu.in. hopper
  • Dust control pickup
  • Pop-off vent for product cutoff
  • Analog or digital control beam
  • Integrated regenerative blower
  • Integrated pneumatic bag clamp
  • Integrated pneumatic bag kicker
  • Painted carbon steel

Options:

  • Self-correcting weight meters
  • SS frame
  • Flip over spout printer

Utilities:

  • Air: 0.5 cu. ft./cycle @ 90 PSI
  • Vacuum: 200-300 CFM
  • Electrical: +230/460VAC 3 ph, 60hz.

1Testing might be required to determine obtainable speeds and accuracy for your application. Examples of proper application include grain, sand, pellets, fertilizers, and a wide range of free-flowing materials.

Approximate Dimensional Drawing:
