Made in the USA This product is made in the USA

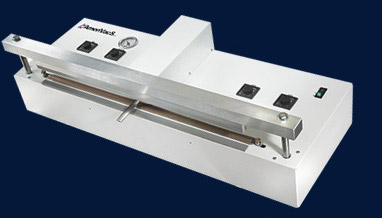

The AmeriVacS Model AVS-20 is a vacuum, impulse, poly bag heat sealer that can   accommodate all popular moisture-barrier bag materials. Single-touch foot control provides for accurate seals and cool-down times with only a single adjustment. The AVS20 produces a 1/4” wide heat seal up to 20” long. The clean, quiet, and non-particle generating air-driven vacuum pump and high-flow stainless steel retractable nozzle make the AVS 20 clean-room compatible. It’s easy to set up using only compressed air and a standard 120 VAC/6 AMP electrical outlet, and it comes with all necessary parts, tubing, and connections to get you quickly up and running.

INPAK SYSTEMS stocks many common replaceable parts for AmeriVacS sealers. A list of common replaceable AVS-20 parts is available.



Standard Features:

  • Easy to operate, virtually maintenance free
  • Accommodates all popular moisture-barrier bag materials
  • Single-touch control provides for accurate seals and cool-down times
  • Clean, quiet, non-particle generating air-driven vacuum pump
  • High-flow stainless steel retractable nozzle
  • Clean-room compatible
  • Easy to set up
  • Requires only standard 120 VAC/6 AMP electrical outlet
  • Comes with all necessary parts, tubing, and connections
  • Vacuum gauge
  • Foot-pedal activated
  • 20″ L x ¼” W seal
  • 3 CFM vacuum flow @ max. 27 in Hg
  • 32 lbs net weight

Options:

  • 220 VAC, 50-60 Hz electrical
  • Imprinter/embosser
  • Adjustable work shelf
  • Multi-position stand

Utility Requirements:

  • Air: 5.0 CFM @ 90 PSI
  • Electrical:
    • Standard: 120 VAC, Single-Phase, 60 HZ, 6 AMPS (standard wall receptacle)
    • Optional: 220 VAC, Single-Phase, 60 HZ, 3 AMPS

INPAK SYSTEMS stocks many replaceable parts. To see a Model AVS parts diagram and list of common replaceable parts click here.

Approximate Dimensional Drawing:

Coming Soon
