The ARPAC Power is a semi-automated pallet stretch wrapper. With a standard load capacity of 4,000 lb. the Power is available in a Low-Profile model for pallet jack loading or a High-Profile model for forklift loading.
The Power-Series has a pre-stretch film range of 150% to 300% and its Allen Bradley PLC controls: turntable speed, carriage speed and wrap patterns. Automatic film cut and wipe is standard on the Power. A remote lanyard allows the operator to start the Power without getting off the forklift.
The Power-Series may be purchased with the WRAP-N-WEIGH® feature that combines wrapping and weighing into one operation, by integrating precision controls into the turntable base.
Optional weight capacities and extend tower heights can accommodate heavier and/or taller pallet loads.
STANDARD FEATURES
- film pre-stretch capability from 150 to 300% stretch
- max. load weight capacity 4,000 lb. (std)
- up to 12 RPM variable turntable rotation speed
- up to 21 FPM variable carriage speed
- turntable size
- Low Profile 72″ Diameter (std)
- High Profile 50″ Square (std)
- EZ-Load® film pre-stretch dispenser
- remote lanyard for startup
- Allen-Bradley® MicroLogix™ PLC
- welded steel construction
- 1/2 hp, 90 Vdc motor with ANSI 60 chain drive system
- photo eye for automatic load height sensing
- adjustable top and bottom illuminated LED wrap counters
- top film over wrap control feature
- electronic film tension adjustment control
- manual jog control for turntable
- dual chain film carriage lift
- UL/CSA approved components
- 1/2 hp, 90 Vdc motor with dual ANSI 40 chain lift drive
- self compensating wipe arm accommodating
OPTIONS:
- variety of access ramps
- AFTD automatic film tear device
- extended film towers
- cold and freezer packages
- adjustable manual roping guide
- pneumatic roping device
- 30″ film delivery system
- other NEMA rated control enclosures
- top platen device for stabilize loads
UTILITIES:
- AIR: 80 PSI @ 3 SCFM
- ELECTRICAL: 120 VAC, 1 Ph, 60 Hz

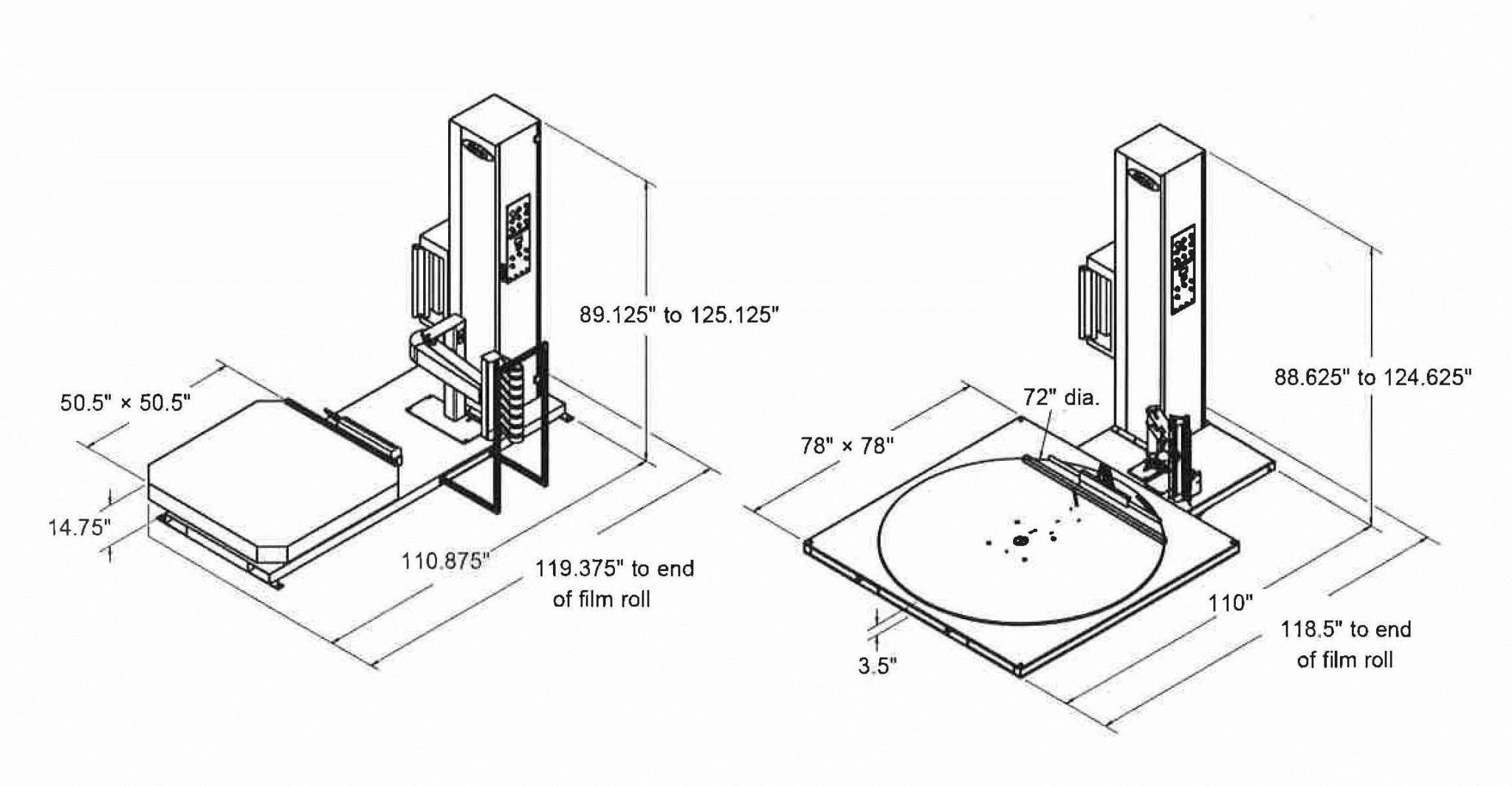

DIMENSIONAL DRAWING
