Brand: Bishamon
Made in the USA This product is made in the USA

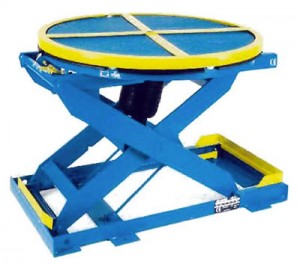

The Bishmon EZ-45 pallet loading station is an automatic, pneumatic operated, scissor pallet lift with a rotating top. The EZ-45 is self-leveling. As the pallet weight increases, the EZ-45 automatically adjusts the pallet height back to a convenient working height. The EZ-45 has a load capacity of 4,500 lbs. (2,040 kg.) and a platform turntable diameter of 43”.


  • Capacity 4,500 lbs. (2040 kg.)
  • Dimensions: (LxWxH) 51” X 43” X 8.75”
  • Self-leveling
  • 43” turntable
  • Pneumatic operation
  • Powder Coated

Utility Requirements:

  • Air: Yes
  • Electrical: None

Approximate Dimensional Drawing:
