Brand: Chantland MHS
Made in the USA This product is made in the USA

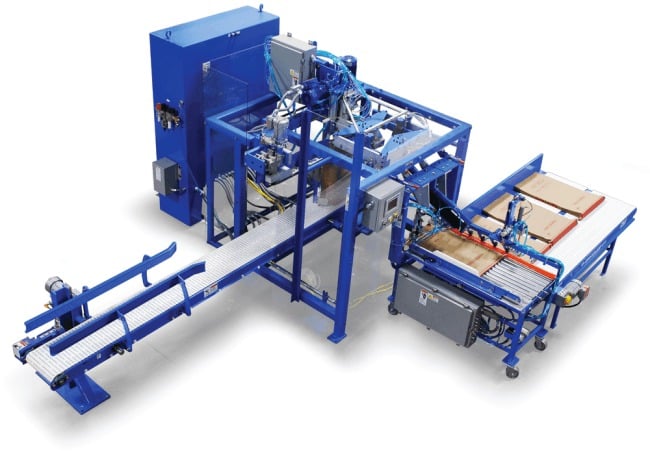

The Chantland AP 2300 is an automated bag place and filling station that can be integrated with net weigh scales. The AP 2300 opens & places open-mouth bags on bagging scales. Depending on the scale, the AP 2300 can pick up, place & fill flat stacked paper, plastic or poly woven bags with free flowing dry solids and powder materials at the rates of up to 12 bags/min. Bag size changes can be made in less than one minute without tools.

Standard Features:

  • Bag widths 13”-20”; lengths up to 40”Fill up to 12 bags/min
  • Fully adjustable to accommodate different bag sizes
  • Change bags without tools
  • NEMA 12 electric with Ethernet capability & touch screen controls
  • Pneumatic controls
  • Industrial enamel finish
  • Quick release clamps
  • Singulating bag feed station
  • Empty bag conveyor

Options:

  • SS construction
  • Powder coated finish

Utility Requirements:

  • Air: 15 CFM @ 60-80 PSI
  • Electrical: TBD

Approximate Dimensional Drawing:
