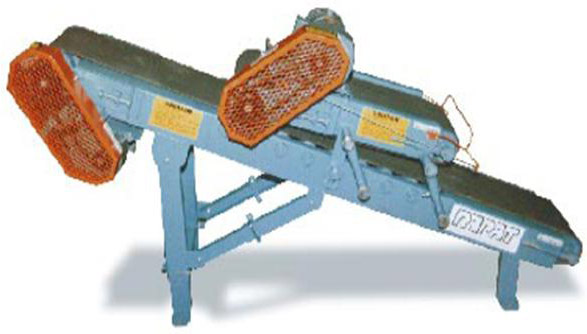

The Rapat Model HDB-F Bag Flattener is a slider-bed, incline belt conveyor designed to flatten and form filled bags for better palletizing. The Model HDB has dual slider-bed conveyors that compress and shape bags for uniform stacking. The standard 8’ long Model HDB-F has dual 12” wide belts drive by 1/2 HP motors at speeds up to 40 FPM. The Model HDB-F can be interfaced with a bag kicker &/or bag turner.

Standard Features:

  • 6″ Channel iron frame
  • Discharge end is adjustable to desired angle of taper
  • Re-greasable sealed bearings
  • Twin 3/4 H.P. totally enclosed fan-cooled motors with magnetic starters
  • Simple start/stop push button operation
  • NEMA-12 electrical controls
  • Step-down transformer on control switches
  • Easily accessible emergency STOP cable

Options:

  • Bag turner to properly positions bags before entering flattener
  • Heavy-duty casters with locks
  • Infeed section to accept bags prior to flattening
  • NEMA-4 watertight electrical controls
  • Two part epoxy paint

Utility Requirements:

  • Air: None
  • Electrical: 230/460VAC, 3-PH, 60HZ

Approximate Dimensional Drawing:
